HITBOX Plasma Cutter Tig Arc Welding CT520 Digital 220V Cutting Machine 4T Easy Cut Tig Arc Functions Multi Use Latest Design

Packing dimension: 445*185*270mm

Cutting thickness:1-14mm

Tig welding thickness:0.5-8.0mm

Arc welding thickness:12mm  (Maximum Rods Size:5mm)
Description

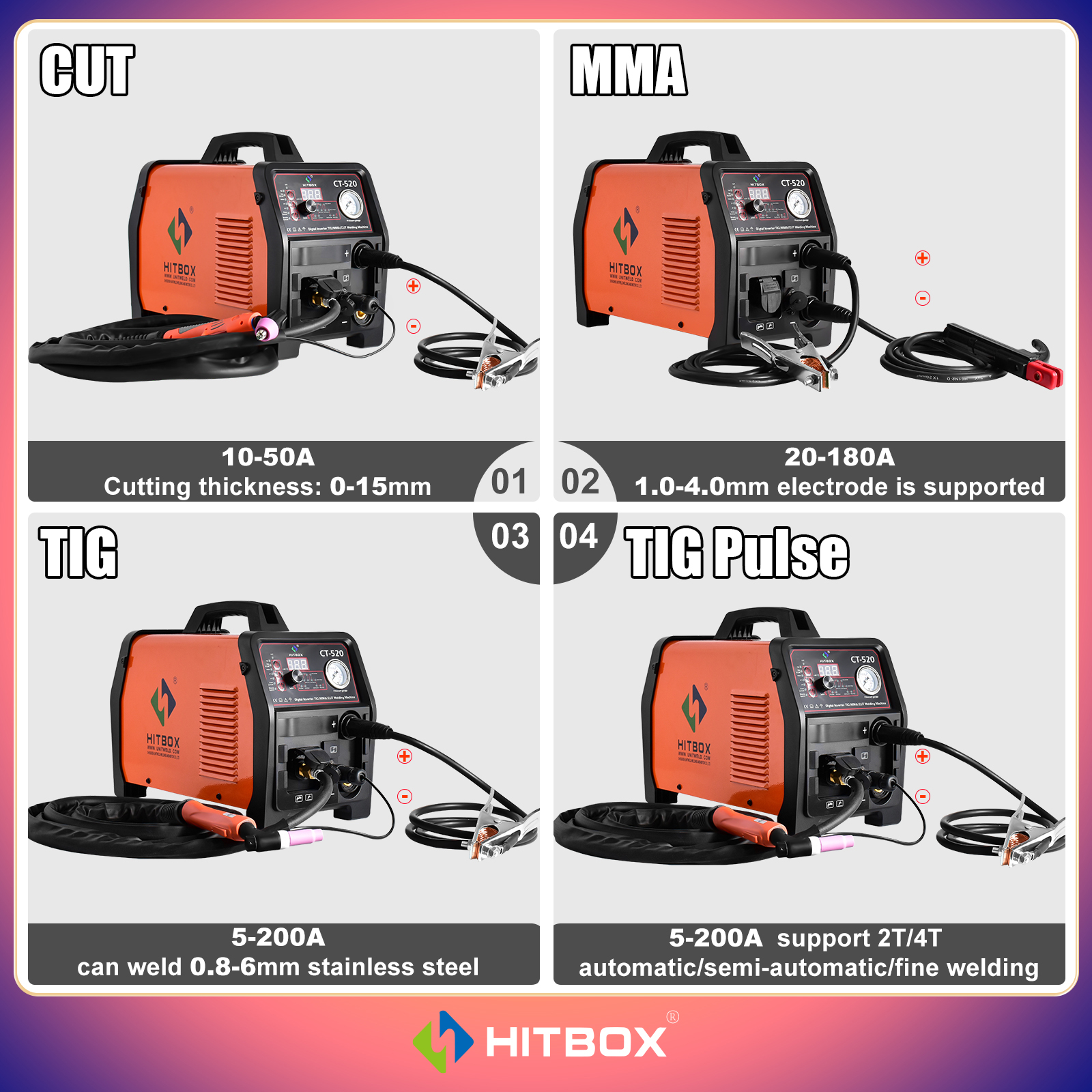

HITBOX Cut/Tig/Arc in 1 Functional CT520

CT520 Specifications:

Brand name: HITBOX

Parameter: CT520

Inverter technology: IGBT

Input voltage: AV220±15%V

Frequency:50/60HZ

Current Range:Cut 10-50A /TIG 5-210A / ARC 10-210A

No-load voltage: Cut 256V/TIG 65V/ ARC 65V

Ignition method :Cut HF/ TIG HF/ ARC touch

Gas after flow:Cut & TIG 1-5S

Efficiency:80%

Rated input current:Cut 25A /TIG 18A / ARC 24A

Duty cycle:Cut 80%/TIG 70%/ ARC 60%

Power factor:0.76

Insulation grade: H

Housing protection grade:IP21S

Net weight:10.9kg

Packing dimension: 445*185*270mm

Cutting thickness:1-14mm

Tig welding thickness:0.5-8.0mm

Arc welding thickness:12mm  (Maximum Rods Size:5mm)



CT520 Package Content:

1X Cutting torch

1X Tig torch

1X Gas tube

1X Earth clamp

1X Barometer (attched with the machine)



Notice: We’d like you to confirm the type of plug with us, please kindly leave the note for it when place the order, thank you.
